Introduction

Maintaining the correct engine temperature is critical for optimal performance and longevity. While often overlooked, the cooling fan is a critical component in preventing your engine from overheating, which can damage the engine. This article outlines operation of the cooling fan and its pivotal role in safeguarding your vehicle's performance, reviews symptoms of cooling fan faults, identifies recommended maintenance steps, and estimate replacement expenses.

Overview of Cooling Fan Operation

The primary function of the cooling fan is to regulate engine temperature by dissipating excess heat. Engines generate a tremendous amount of heat during operation, and if this heat is not managed effectively, it can lead to overheating and result in engine damage.

There are two main types of cooling fans used in vehicles:

  • Mechanical (Belt-driven) Fans: These fans are connected directly to the engine and are driven by a belt. They spin at a speed proportional to the engine's RPM.
  • Electric Fans: These fans are controlled by the ECM (Engine Control Module) based on the information from temperature sensors. Electric fans operate independent of engine speed, making them more energy efficient.
Understanding The Cooling Fan A Crucial Component on Vehicle image 1.jpg__PID:14696b16-2904-42d8-89fc-7a7e5bfb6dff

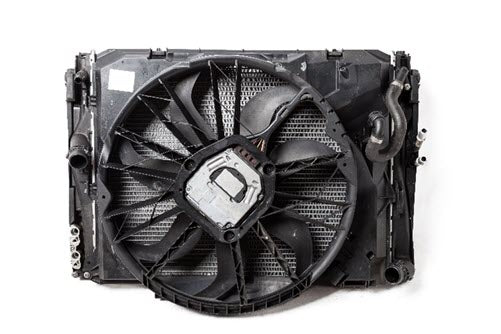

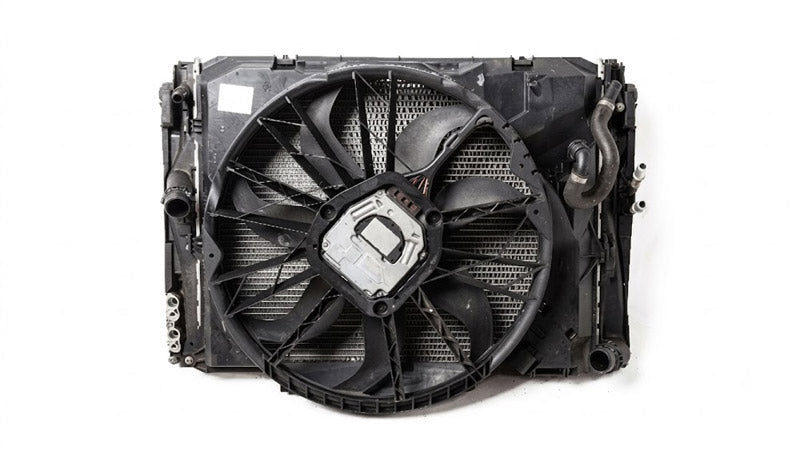

Electric Cooling Fan

Common Cooling Fan Symptoms

A faulty cooling fan can lead to a variety problems related to engine overheating. Be aware these symptoms to ensure prompt intervention:

Understanding The Cooling Fan A Crucial Component on Vehicle image 2.jpg__PID:41f9d26e-b100-49a6-88ee-cdba892195a9

Engine Overheating: When the cooling fan fails or isn't working correctly, the most noticeable symptom is engine overheating. The cooling fan is crucial in keeping the engine's temperature at a safe level. If the cooling fan is not functioning, the engine can overheat rapidly, leading to severe damage. The temperature gauge on your wehicle’s dashboard will enter the "red zone," indicating an overheating engine.

Constant Fan Operation: For vehicles equipped with an electric cooling fan, the fan may run continuously, even when the engine is cold. This can indicate a fault in the fan control system, temperature sensor, or relay. Continuous fan operation can lead to unnecessary battery drain and reduced fuel efficiency.

Understanding The Cooling Fan A Crucial Component on Vehicle image 3.jpg__PID:307683c2-b715-481b-b270-fdc28ea28a6d

High-Temperature Warning Light: Many modern vehicles are equipped with warning lights (or other messages on the vehicle’s dashboard) to alert you to engine temperature issues. If you see a warning light that looks like a thermometer or an "engine overheating" message, it's a clear sign that the cooling fan may not be working correctly, and the engine is getting too hot.

Engine Performance Issues: If the engine overheats due to cooling fan failure, it can lead to poor engine performance. The engine may lose power, run rough, or even stall. These symptoms can be especially noticeable during hot weather or when driving in heavy traffic.

Not sure which scanner to buy? Take our quiz.

Discover your ideal OBD2 scanner by answering a few questions.
Only takes a few seconds.

Cooling Fan Maintenance

To ensure your cooling fan operates effectively, follow these maintenance practices:

Regular Inspections: Perform visual inspections of the cooling fan and its associated components as part of your routine vehicle maintenance:

  • Check for visible wear or damage to the fan blades, shroud, and housing. Damaged blades can result in inefficient cooling.
  • Inspect the electrical connections, wiring, and connectors for signs of wear, corrosion, or loose connections. Faulty electrical connections can disrupt the fan's operation.
  • Ensure that the fan shroud is intact and properly secured. The cover helps direct airflow through the radiator and is essential for efficient cooling.
Understanding The Cooling Fan A Crucial Component on Vehicle image 4.jpg__PID:c5232fd3-5c8b-459a-add3-2eb6ec67e24f

Cleaning: Keep the cooling fan and the surrounding area clean and free from debris, dirt, and insects. A clean fan and radiator maximize airflow, which is crucial for effective cooling. Use a soft brush or compressed air to remove debris and clean the radiator fins.

Understanding The Cooling Fan A Crucial Component on Vehicle image 5.png__PID:98aab5f3-d1d3-4868-be76-e31ab4cd46e5

Professional Inspection: If you notice any symptoms of a faulty cooling fan or engine overheating, consult a qualified mechanic or technician for a thorough inspection. These professionals can use specialized diagnostic tools to assess the fan's functionality, including the temperature sensor and fan relay.

Understanding The Cooling Fan A Crucial Component on Vehicle image 6.jpg__PID:d3781afd-5add-4375-bb30-7fbf108da321

Regular Coolant Changes: Follow the manufacturer's recommendations for coolant changes. Over time, coolant can lose its effectiveness, leading to decreased cooling system efficiency. Frequent coolant changes help maintain the cooling system's performance and prevent corrosion.

Cost of Cooling Fan Replacement

The cost of repairing or replacing a cooling fan can vary depending on the vehicle's make and model, the type of fan (mechanical or electric), and labor charges. The cost can range from $200 to $500 or more, including parts and labor.

Conclusion

The cooling fan may operate quietly beside the engine, but its role in preserving your engine's performance is indispensable. Recognizing the signs of a faulty cooling fan, conducting regular maintenance, and addressing issues promptly are essential for keeping your engine cool and ensuring your vehicle's reliable performance. By understanding the significance of the cooling fan, you can contribute to a smoother and safer driving experience.
