What is a Smart Junction Box? (Fords)

Published on December 27th, 2023

Ellipse 7.png__PID:a6367428-4ee7-4651-b740-175e25e645fb

Innova R&D Team

Here to assist you in any form & shape

Repair vehicles with confidence.

Innova diagnostic scanners assist you in understanding your vehicle, finding problems, and providing guidance for repairs. You can access the same advanced technology used by professionals, without the high costs or subscription fees.

Learn more about Innova Scanners

What is a Smart Junction Box?

A Smart Junction Box (SJB) is an electronic component found in Ford vehicles that serves as a central hub for controlling and distributing electrical power to various systems and components within the vehicle. It acts as an intelligent interface between the vehicle's electrical network and the various electronic modules, sensors, switches, and actuators throughout the vehicle.

The main functions of a Smart Junction Box include:

  • Power Distribution: The SJB manages and distributes electrical power from the vehicle's battery to different electrical components and subsystems. It ensures that the appropriate voltage and current are supplied to each component according to their requirements.
  • Fuse and Circuit Protection: The SJB incorporates fuses and relays to protect electrical circuits from overloads and short circuits. In the event of an electrical fault, the SJB can detect the issue and may deactivate the affected circuit to prevent further damage.
  • Network Communication: The SJB acts as a gateway for communication between different electronic modules and systems within the vehicle. It can facilitate data exchange, diagnostic communication, and coordination between various control units.
  • Control and Integration: The SJB is responsible for receiving input signals from switches, sensors, and other control devices within the vehicle, and processing these signals to activate or deactivate various components. It can control functions such as lighting, climate control, power windows, door locks, and other electrical features.
  • Fault Monitoring and Diagnostics: The SJB continuously monitors the electrical system for faults and malfunctions. It can detect issues such as open circuits, short circuits, or communication errors between modules. When a fault is detected, the SJB may trigger warning lights on the dashboard or store diagnostic trouble codes for analysis by a technician.
  • Energy Efficiency: SJBs often incorporate energy-saving features to optimize power consumption. They can activate or deactivate specific electrical components based on the vehicle's operating conditions or driver inputs, helping to conserve energy and improve fuel efficiency.

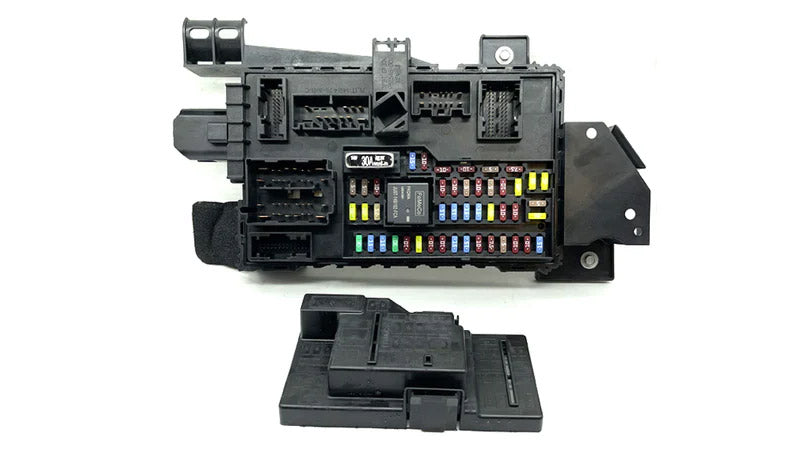

What is a Smart Junction Box image 1.png__PID:038bd8ae-419c-4395-bf68-0e1184ac51d0What is a Smart Junction Box image 2.png__PID:3d9f03a8-1970-45bc-86e6-1573d01933f1

The design and capabilities of Smart Junction Boxes can vary depending on the vehicle's make, model, and technological advancements. They are typically located in the engine compartment, passenger compartment, or trunk area of the vehicle, depending on the specific vehicle architecture and electrical system layout.

Overall, the Smart Junction Box plays a critical role in managing the electrical distribution and control within a vehicle, ensuring efficient and reliable operation of various electrical systems while enabling communication and diagnostics between different components and modules.

Not sure which scanner to buy? Take our quiz.

Discover your ideal OBD2 scanner by answering a few questions.
Only takes a few seconds.

Circuit Symbols:

What is a Smart Junction Box image 3.png__PID:c94bbb0d-0961-4a93-a3b9-02c799338050
