Reading O2 sensor voltage ranges in Live Data

Published on January 4th, 2024

Picture 2.png__PID:ad052a27-31be-4685-a612-71e45e700788

Innova R&D Team

Here to assist you in any form & shape

Reading O2 sensor voltage ranges in Live Data image 1.png__PID:1bf3091e-6be5-4a50-b602-282641b2c625

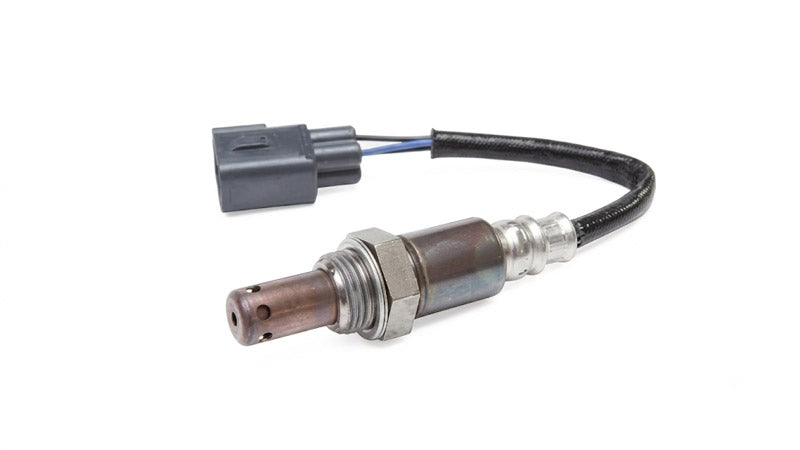

02 Sensor

Repair vehicles with confidence.

Innova diagnostic scanners assist you in understanding your vehicle, finding problems, and providing guidance for repairs. You can access the same advanced technology used by professionals, without the high costs or subscription fees.

Learn more about Innova Scanners

Reading O2 sensor voltage ranges

The voltage output of an oxygen (O2) sensor in a properly functioning vehicle can vary depending on the specific engine and the operating conditions. However, there are general voltage ranges that O2 sensors typically produce. A properly functioning oxygen sensor will show a rapidly fluctuating output voltage between approximately 0.1 and 1.0 volts. When the air-fuel mixture is perfect, the O2 voltage value will be exactly 0.45V. As the mixture becomes rich, the voltage will increase (up to 0.9 volts). If the fuel mixture is burning lean, there will be more oxygen in the exhaust and the voltage will drop (as low as 0.1 volts).

The CPU uses the O2 sensor's output voltage to adjust the air/fuel mixture in the engine. Also, you may examine the state of the catalytic converter using live data from the O2 sensors.

  • Rich Air/Fuel Mixture: The signal is high (0.7 to 0.9 volts) when the air/fuel mixture is rich (little O2 in the exhaust).
  • Lean Air/Fuel Mixture: The signal is low (0.1 to 0.3 volts) when the air/fuel mixture is lean (Too much 02 in the exhaust).

Using live data to look at fuel trims and O2 sensors in a 2018 Ford Transit.

Using live data to look at 02 sensor voltages in a 2007 Cadillac DTS.

Viewing Live Data with the Innova 5610

Not sure which scanner to buy? Take our quiz.

Discover your ideal OBD2 scanner by answering a few questions.
Only takes a few seconds.

How do you know what is Bank 1 or Bank 2, or which O2 sensor is Sensor 1 or Sensor 2?

Bank 1 is the side with the #1 cylinder (Cylinders 1 – 3 – 5 – 7).

Bank 2 is the side with the #2 cylinder (Cylinders 2 – 4 – 6 – 8).

Sensor 1 = Before Catalytic converter Front (Upstream O2 sensor).

Sensor 2 = After Catalytic Converter Rear (Downstream O2 sensor).

  • Bank 1 Sensor 1 - Driver side before converter (front)
  • Bank 1 Sensor 2 - Driver side after converter (rear)
  • Bank 2 Sensor 1 - Passenger side before converter (front)
  • Bank 2 Sensor 2 - Passenger side after converter (rear)
Reading O2 sensor voltage ranges in Live Data image 2.png__PID:14b43791-2186-4536-bdcc-14a207b52fcd

An engine that’s running lean has too much air, which also delays combustion, causing backfires.

Remember Uncle Buck's 1977 Mercury Marquis Brougham?

Some of the symptoms of a bad oxygen sensor include a noticeable decrease in fuel economy along with a rich mixture. This does not automatically indicate that the sensor has failed. Be sure to check all vacuum hoses for leaks as well as the ignition system for any problems. Remember, the O2 sensor is only giving you a reading after the combustion process.

When diagnosing O2 sensor performance, it's crucial to consider the sensor's response over time and in different operating conditions. Comparing the sensor's output to expected values, observing its response to changes in throttle position or engine load, and analyzing data from other sensors can help determine if the O2 sensor is functioning correctly. The oxygen sensor is an item in a vehicle that gets replaced due to the fault of another component. Just because a fault code indicates an oxygen sensor problem, don't just replace the O2 sensor. Use the following information to help diagnose the underlying problem.

For precise information on the expected O2 sensor voltage range for a specific vehicle, it's recommended to consult the vehicle's service manual or reach out to the manufacturer's technical support.
