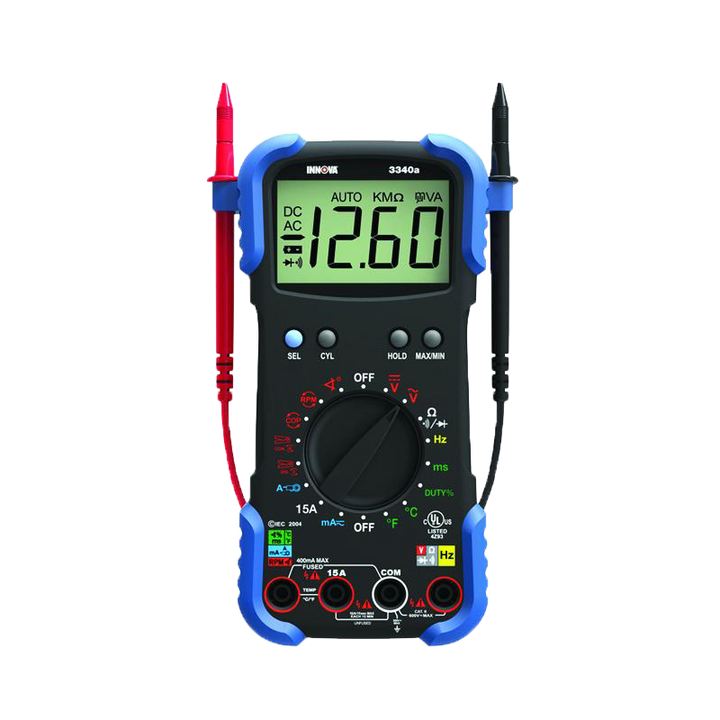

Innova 3340
×
Photos
Videos
$117.64
- Free Shipping
- Hassle-Free Returns
- 1-Year Warranty
Add-Ons
Extended Warranty
USD $29
All products bought by authorized sellers (retailers, Amazon, and this site) come with a 1-year limited
warranty. This warranty package extends your effective warranty by an additional year. Your proof of
warranty will be sent directly to your email.
This extended warranty applies only to new products
purchased on innova.com. It can be used once per product, and buying multiple warranties won’t add extra
years.
Auto-Ranging, Auto Shut-Off & Over-Load Protection
Easy and safe operation for users of all skill levels.
10 MegOhm Input Impedance
Safe for electrical and automotive use. Prevents damage to the vehicle’s ECU.
High Amp Rating
Measure up to 15 amps for device testing.

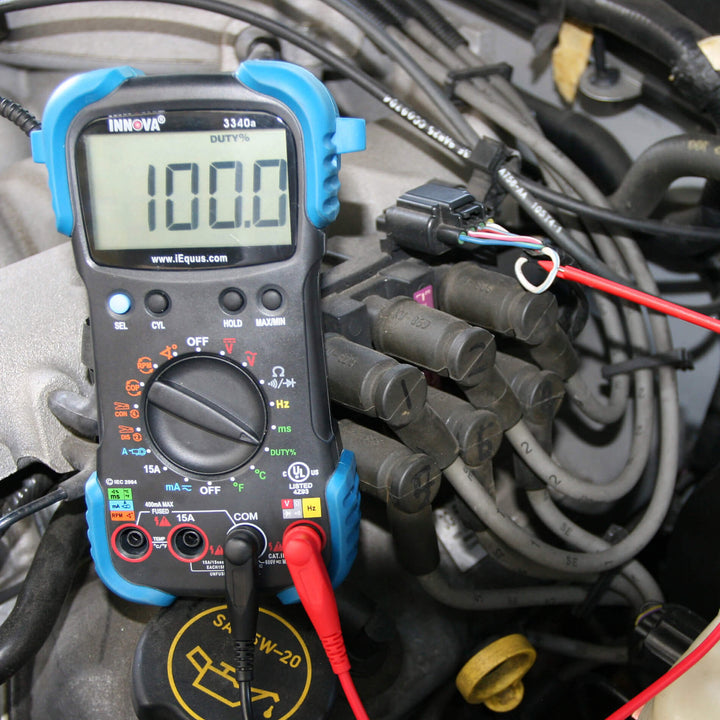

Measures Vehicle RPM
Using the included inductive pickup (including coil-on-plug vehicles).
Automotive Specific Measurements
- RPM
- Dwell
- Frequency
- Temperature
- Pulse Width
- Duty Cycle
Easily find and save retrieved data.
Protective Rubber Corner Guards
Drop protection for any work environment.

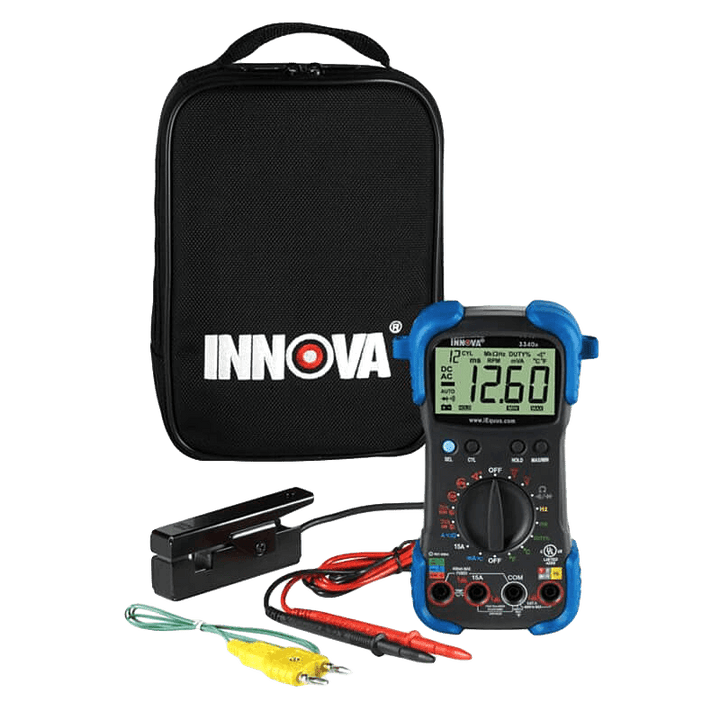

Accessories Included
Temperature probe, inductive RPM clamp, and carrying case.
Why do the numbers keep fluctuating when I'm not testing anything?
This is a normal function of the Auto Ranging feature of the 3340 DMM. It is simply picking up signals from the environment around it. When conducting a test, the meter will automatically zero out before giving a reading.
Does the 3340 Auto-Ranging DMM have a low battery indicator?
Yes. The 3340 Auto-Ranging DMM will display a battery symbol on the LCD when low.
Can I use any brand leads with this DMM?
Yes, you can use any brand leads as long as they fit the Innova DMM.
Does the 3340 Auto-Ranging DMM have reverse polarity protection?
Yes. The 3340 Auto-Ranging DMM has an automatic negative (-) polarity indication symbol.
Can the 3340 Automotive DMM measure DC current (AMPS)?
The 3340 Automotive DMM will measure 40mA and 400mA fused DC current (AMPS). The 3340 Automotive DMM will measure 15A unfused DC current (AMPS). * A waiting period of at least 15 minutes is necessary between every 15-second testing period.
Can the 3340 Automotive DMM measure RPM?
The 3340 Automotive DMM will measure RPM on Conventional, Distributorless Ignition Systems (DIS) ignition systems. The inductive pickup must be used with the 3340 Automotive DMM to read RPM. The range of RPM is 0 to 10,000 RPM.
How can I access the batteries?
You can access the batteries by removing the screw on the back of the 3340 holding the battery cover in place.
Does the 3340 Auto-Ranging DMM automatically shut off?
Yes. The 3340 Auto-Ranging DMM will shut off after being idle for 10 minutes.
Does the 3340 Auto-Ranging DMM have a fuse?
Yes. The 3340 comes with a 0.500A/250V – UL Listed Bussmann, GMA Type (Radio Shack GMA/270 Series: #270-1047) fuse.
What size battery does the 3340 Auto-Ranging DMM use?
The 3340 Auto-Ranging DMM uses two 1.5V AA batteries.
