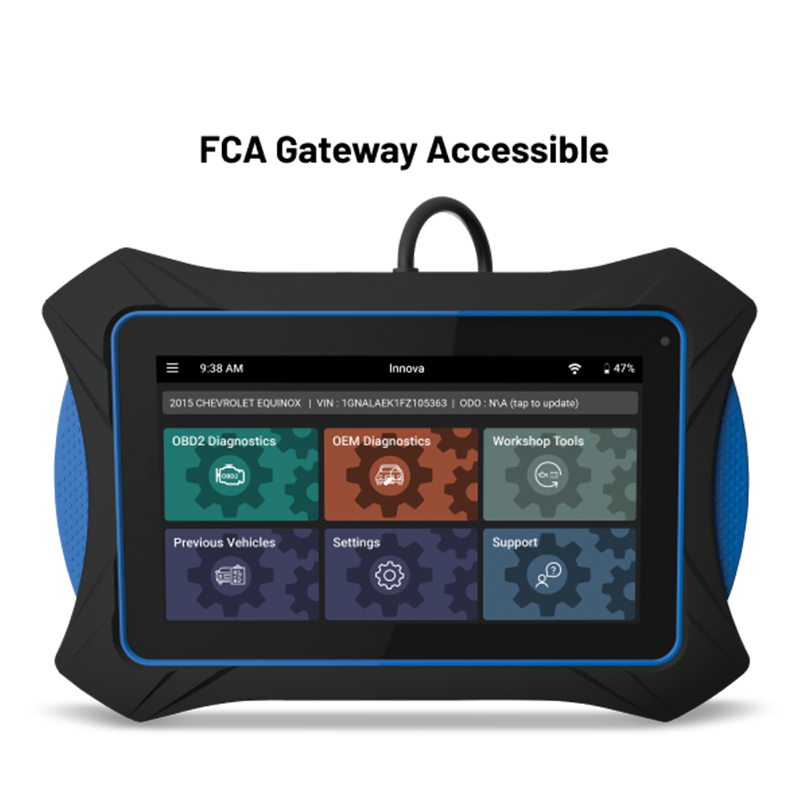

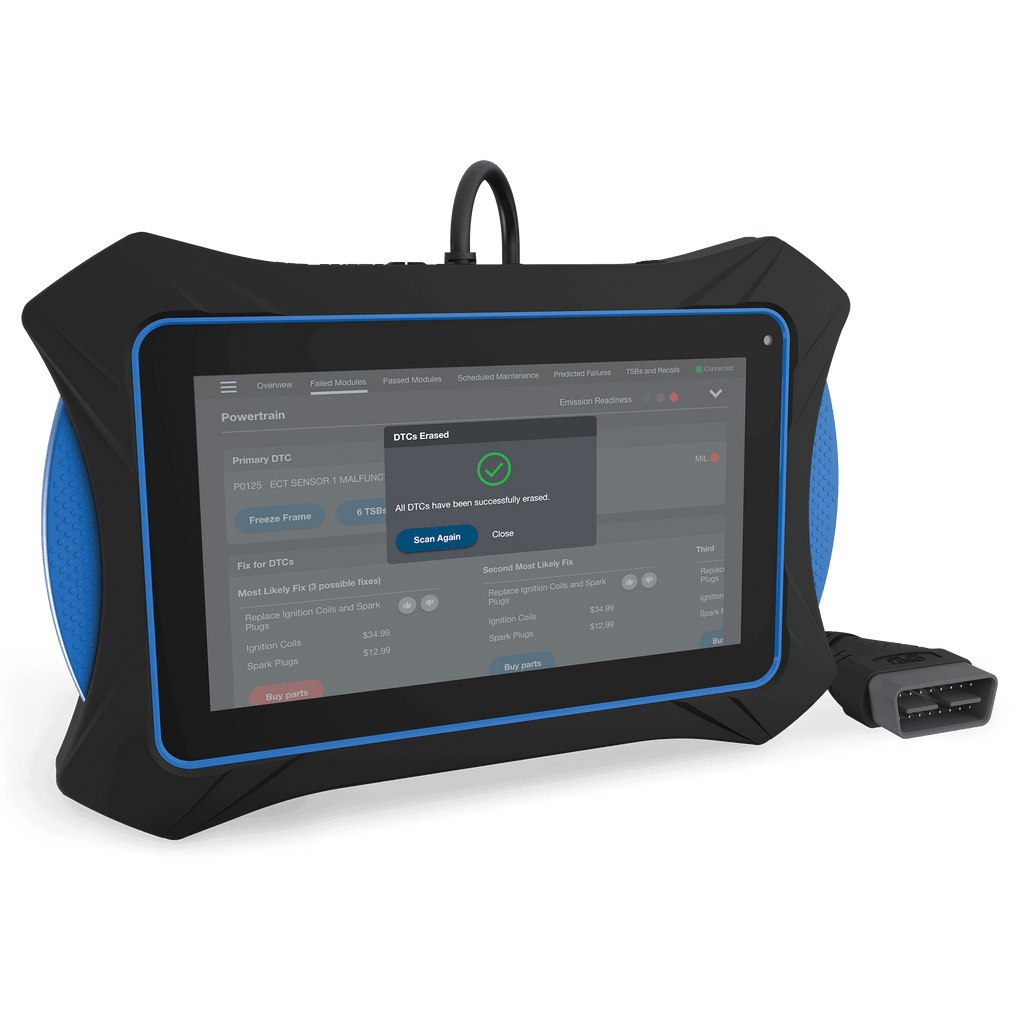

Innova 7111 - OBD2 Bidirectional Scan Tool Tablet

  • $705.87

Innova 7111 - OBD2 Bidirectional Scan Tool Tablet

  • $705.87

The Innova 7111 Smart Diagnostic System provides enthusiast DIYer’s and pros with OEM level services, in an advanced and easy-to-use tablet form factor with an intuitive user interface to help you find the fix faster.

INNOVA 7111 Smart Diagnostic System Earns MOTOR Top 20 Award. Learn More

Available at AutoZone and Amazon

FIND IN STORE
WARNING
WARNING

This product can expose you to chemicals including DiNP, which is known to the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov

FEATURE COVERAGE

Below is a list of all features this product offers. Use the selector below to identify which specific features are available for your vehicle.

ENTER VEHICLE INFORMATION
OR ENTER VIN NUMBER
17

CHECK COVERAGE

OR ENTER MAKE

Submit

OBD2 Diagnostics
OEM Diagnostics
Workshop Tools
Availability Feature Description
OBD2 Diagnostics Professional-level functionality for reading and clearing OBD2 powertrain emission-related fault codes; viewing freeze frame and I/M data; monitoring, graphing, recording and playback of live data, vehicle information and performs emission readiness testing.
$01 - Live Data View live data for Powertrain (OBD2).
$01 - Graph Live Data Graph live data.
$01 - I/M Monitors Status View monitor readiness status for gasoline and diesel engines.
Trip Cycle Procedure View trip cycle procedures that instructs how to drive the vehicle in such a manner to meet the required “Enabling Criteria” to run and complete its diagnostic testing.
$02 - Freeze Frame View vehicle conditions recorded by the on-board computer at the time the emission-related fault.
DTC Severity Identifies three (3) levels of vehicle fault severity.
$03 - Read DTC Read current diagnostic trouble codes (DTC) for Powertrain.
$04 - Erase DTC Erase diagnostic trouble codes (DTC) for Powertrain.
$05 - O2S Results View oxygen sensor monitoring test results.
$06 - Non-continuous Test Results View on-board monitoring test results for specific monitored systems.
$07 - Pending DTCs Read pending diagnostic trouble codes (DTC) for Powertrain.
$08 - EVAP Control of on-board system, test or component.
$09 - Vehicle Information Read vehicle information (VIN, CAL ID, CVN, IPT).
$0A - Permanent DTC Read permanent diagnostic trouble codes (PDTC) for Powertrain.
