Common Symptoms of a Faulty Transmission Speed Sensor

As an Amazon associate, we earn from qualifying purchases.

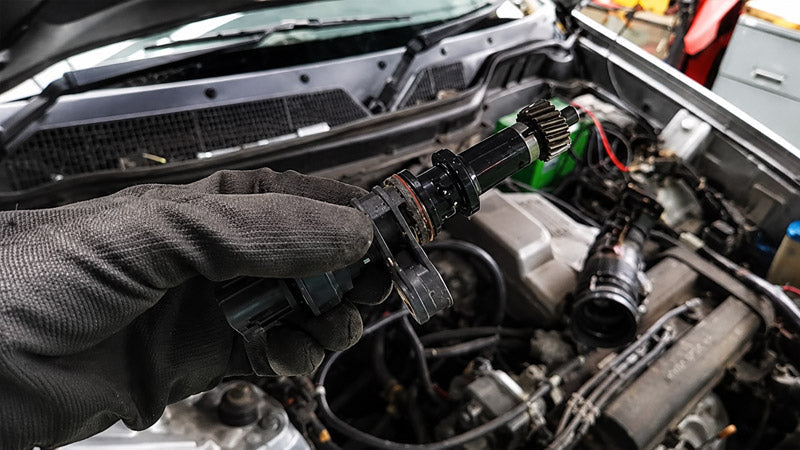

Transmission speed sensors are vital components of a vehicle’s drivetrain. They are located near the input and output shafts of the transmission. These sensors monitor the rotational speed of the transmission shafts and relay the data to the Engine Control Module (ECM) or Transmission Control Module (TCM) for smooth and efficient gear shifting, optimizing overall transmission performance.

There are generally two transmission speed sensors that work in tandem: the Input Shaft Speed (ISS) sensor and the Output Shaft Speed (OSS) sensor. The ISS sensor specifically measures the rotational speed of the transmission’s input shaft, which receives power from the engine via the torque converter. The OSS sensor, on the other hand, tracks the rotational speed of the output shaft, which delivers power to the driveshaft or differential. By comparing the input and output data, the ECM or TCM calculates the actual gear ratio in real-time and ensures it aligns with the desired gear for optimal driving. A malfunctioning transmission speed sensor can lead to issues such as erratic shifting, incorrect gear ratios, or even transmission failure. Regular inspection and timely replacement are essential to maintain vehicle performance and avoid costly repairs.

This article highlights the typical symptoms of a faulty transmission speed sensor, to help you identify potential issues and their root causes.

What Causes Transmission Speed Sensor Failures?

• Electrical Connection Problems: Faulty wiring, corroded terminals, or damaged connectors can disrupt the signal between the sensor and the control module, leading to inaccurate or lost data transmission.
• Aging and Wear: As with any mechanical or electronic part, transmission speed sensors deteriorate with time and usage, which can result in reduced accuracy or complete failure.
• Exposure to Contaminants: Dirt, oil, or other contaminants can accumulate on the sensor or its surrounding components, interfering with its ability to read the rotational speed accurately.
• Excessive Heat or Vibration: Continuous exposure to high temperatures and vibrations from the drivetrain can degrade the internal components of the sensor, reducing its efficiency or causing complete failure.
• Physical Damage: The transmission speed sensors may sustain damage due to debris, road hazards, or improper handling during maintenance, compromising theeir ability to function properly.

Common Symptoms of a Faulty Transmission Speed Sensor

1. Illuminated Check Engine Light (CEL) or Malfunction Indicator Light (MIL)

A malfunctioning transmission speed sensor may trigger the vehicle's On-Board Diagnostic (OBD) system to illuminate the MIL and store a corresponding Diagnostic Trouble Code (DTC) in its memory. However, the MIL can be illuminated for multiple reasons, so using a Scan Tool to diagnose the specific issue is essential.

2. Inconsistent or Rough Gear Shifting

A failing transmission speed sensor can disrupt the precise timing and coordination required for smooth gear changes. Without accurate speed data from the sensor, the ECM cannot properly regulate gear shifts, leading to irregular or delayed shifting. This may cause the transmission to shift roughly, slip, or take longer than normal to engage the next gear. Over time, these harsh shifts can damage internal transmission components, such as hydraulic lines, valve bodies, or even mechanical gears, further escalating repair costs.

3. Insufficient Power Delivery

When the transmission speed sensor malfunctions, it can cause issues with the vehicle's ability to transfer power efficiently from the engine to the wheels. Since the sensor plays a key role in helping the TCM determine proper gear shifts, a faulty sensor may lead to improper shifting, causing the engine to operate at inefficient RPMs. As a result, the vehicle may feel sluggish during acceleration, with delayed or jerky shifts that make it hard to put power down to the wheels. This symptom can significantly affect the overall driving experience and may worsen if not addressed.

4. Poor Fuel Economy

A faulty transmission speed sensor can affect the ECM's ability to manage gear ratios effectively, leading to suboptimal transmission performance. The engine may work harder than necessary to compensate for improper gear selection, resulting in increased fuel consumption. This symptom is often subtle at first but becomes more noticeable as the sensor deteriorates, impacting the vehicle's overall efficiency and operating costs.

5. Incorrect Speedometer Readings

A faulty transmission speed sensor can send incorrect speed data to the ECM or TCM, causing the speedometer to display inaccurate, fluctuating, or erratic readings. This can be a safety hazard, as the driver may be unaware of the vehicle’s actual speed, increasing the risk of speeding violations or improper speed adjustments in traffic. Additionally, incorrect speed data can disrupt other vehicle systems that rely on speed input, such as cruise control and traction control, potentially affecting overall driving stability.

Identify a Faulty Transmission Speed Sensor with the Innova Scan Tool

The Innova Scan Tool quickly retrieves and identifies existing DTCs stored in your vehicle’s computers. With a quick OBD2 Scan, you can retrieve existing DTCs, the I/M Status of the vehicle, and any collected Freeze Frame data from these computers. Refer to the Innova Coverage Checker to determine the level of information supported on your vehicle by year, make and model. The Innova Scan Tool effectively diagnoses transmission speed sensor-related issues, helping you easily pinpoint and resolve problems.
